RGB Full Color Advertising High-Performance P6.67 Outdoor Fixed Giant LED Display
BOF Outdoor Fixed Install Series
- Cabinet size can be customized according to user's requirement
- Fast lock system design guarantees a quick and easy installation
- Outdoor Fixed LED Display is hot in the advertising industry,it can fully work in the outdoor environment.
- Life time >11 years
- Relatively low cost (factory), meets your budget
- Stable capability, pass professional testing
Specifications
| | BOF-6 |
| Physical Pitch | 6mm |
| Pixel Configuration | SMD 2727 |
| Pixel Density | 22,500 pixels/m² |
| Module Dimensions(W*H)(mm) | 320*320 |
| Panel Dimensions(mm) | 1280*960*150 |
| NO. of Modules Per Panel (W*H) | 4*3 |
| Panel Material | Steel/ Aluminum |
| Colors | 281 trillion |
| Brightness | >6,500 nits |
| Weight (kg/m²) | 65/45 |
| Processing | 16 bit |
| Refresh Rate | >1920 Hz |
| IP Rating | IP65/ IP54 |
| Viewing Angle | V:160 degree
H: 140 degree |
| Expected Lifetime | 100,000 Hrs |
| Operating Temp/Humidity | -20ºC-50ºC/
10%-90% |
| Storage Temp/Humidity | -20ºC-50ºC/
10%-90% |
| Physical Resolution of Module(W*H)(mm) | 48*48 |
| Physical Resolution of panel(W*H)(mm) | 192*144 |
| Avg./ Max. Power Consumption | 360/900W/ panel |
| Servicing | Front/Rear |
About Product
Robust, Sturdy, Conventional, Outdoor Advertising Display
Conventional DOOH Display
Stable and Durable
Mechanical Front Access
Concave, Convex with Any Angles
High refresh, high gray scale
The refresh rate could reach to 1920 HZ/S, no trailing, no strobe for the image. It helps to solve the problem of high refresh with loss of fray scale, to ensure the high definition image.
Wide viewing angle
outdoor full color display can use the power normally under the temperature at -20 °C to +50°C
Supporting brightness and color correcting of the whole screen.
Installation
Application case
Widely used for shopping malls, entertainment venues, stage rental, railway station, airport, theme resort, wedding,opera house, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.

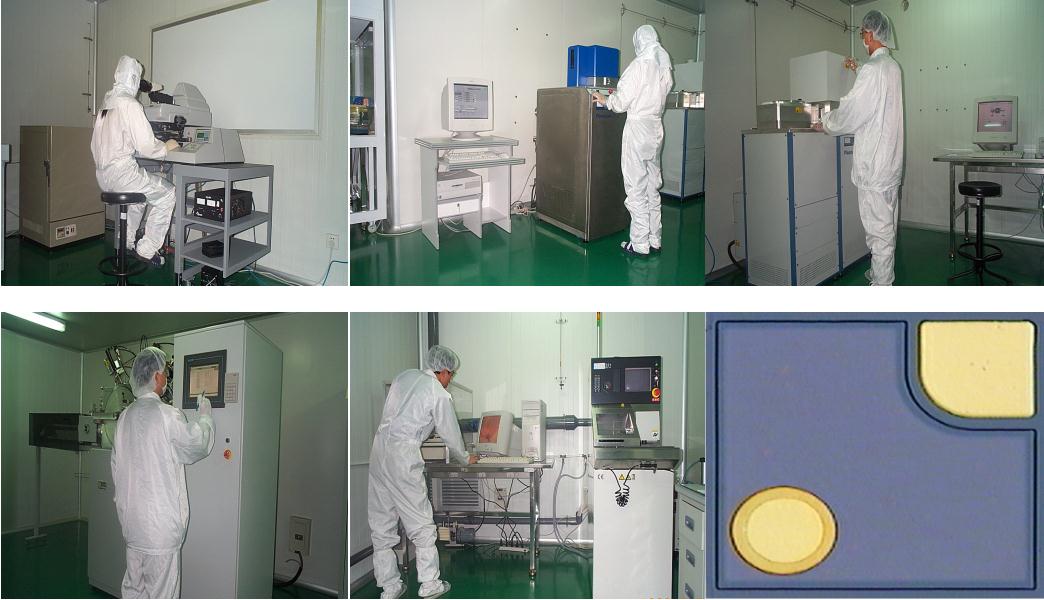

Our company
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
FAQ
1.What is viewing angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.
2. How to choose a proper led screen for your need?
You just need to consider three simple questions when you choose a led screen.
1.Will you use it indoor or outdoor?
2.Is it for rental usage(need to be moved from one place to another place very often) or for fixed installation (to be installed in one place forever)?
3.What is the approximate size of the whole led screen you would like to purchase?
3. How to install it after I received it?
We will offer you the drawing to guide you for installation, we could also offer drawing, software set up drawing or photo or arrange our engineer to help if needed.
4. How could I buy the products I need if there is no price in the website and could I get some samples first?
A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.We welcome sample order to test and check quantity.
5. What is a custom LED display?
Custom LED displays can be designed to meet the needs of the user, taking into account all of the above for easy maintenance. Of course, maintenance can help to increase the service life of any electronic device, and measures are taken during the production process, so that maintenance costs are greatly reduced.
A custom LED display, as the name suggests, can control anything with any message you can think of. They are used in almost all industries, such as factories, banks, airports, universities, libraries, etc.
Custom LED displays are mounted on the wall or suspended from any ceiling for broadcasting information viewed from any distance. In addition, the brightness of these custom LED displays can be displayed very clearly at any distance.
6. I would like to ask you if it's possible to have my logo on the product.
A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra-service,so a little bit extra service fee is needed.
