Slim Stage Events High Transmitting LED Curtain Display 1/4 Scan for Commercial
Main Products features
High Transparency and High Brightness
20-80% transparency rate, see through, suitable for glass wall mounting
>6500 nits brightness, for all outdoor environment
Vivid colors
Exceptionally Lightweight and Slim
10-18 kg/m² gross weight
Easy to install and save installation space
Operating long time
Low consumption of electricity to increase the life time of LEDS.
High brightness and great visibility
High visibility even under direct sunlight, without any cooling system, energy efficient.
Low power consumption, low noise created, energy-saving 30%.
Specifications
| | BOC-31.25 |
| Physical Pitch | 31.25mm |
| Pixel Configuration | 1R1G1B |
| Pixel Density | 1024 pixels/m² |
| Unite Size (W*H)(mm) | >=1500*250 |
| Weight(kg/m²) | 15 kg/m² |
| Physical Resolution of Unit (H*V) | 48*8 |
| Colors | 281 trillion |
| Processing | 16 bit |
| Contrast Ratio | 2000:1 |
| IP Rating | IP67 |
| Viewing Angle | H:120°,V:60° |
| Panel Material | Alumium |
| Expected Lifetime | 100,000Hrs |
| Operating Temp/Humidity | -30ºC-60ºC/10%-90% |
| Storage Temp/Humidity | -40ºC-85ºC/10%-95% |
| Avg/Max Power Consumption | 107/329 /W/m² |
| Servicing | Front / Rear |
| Refresh Rate | >3840 Hz |
| Avg/Max. Power Consumption | 207/690 W/m² |
| Brightness | >5,000 nits |
Proucts detail

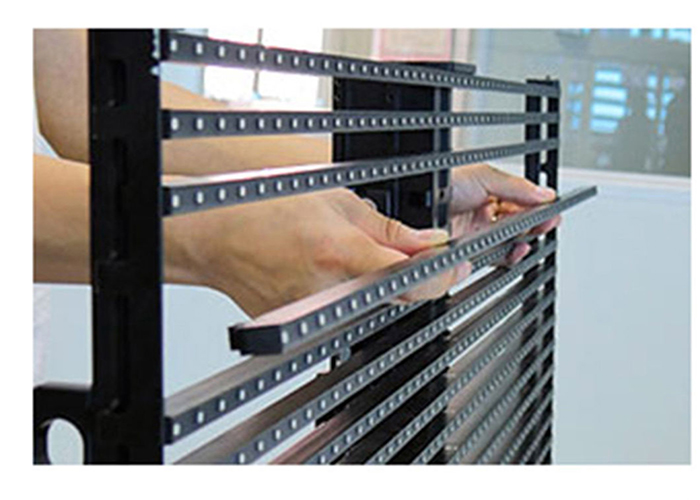

If you want to know about that how to install the curtain led display, pls click the picture as follow and then you will get the video↓↓↓↓↓↓
High Protection Level
IP67 for whole screen, complete waterproof for various weather conditions
Screen life time is increased significantly.
Fast installation and Easy Maintenance
Glass led video wall led display is stable and safe when light on. Only take out one led bar loosing the bracket,you can easily change the defective leds within 30s.
Steel frame is canceled during installation
Cost saving
Simple steel frame structure, indoor maintenance, lightweight products, easy installation, a large number of installation costs. It also saves the cost of building lighting, which can not only replace the exterior wall lighting, but also bring you advertising benefits.
Wide applications
Any building with glass window or wall, for example, bank, large shopping mall, theatres, chain stores, hotels, and landmarks etc.
Our company
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
Our Service
1) Reply your inquiry in 24 working hours.
2) Customized design is available,OEM & ODM are welcomed.
3) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4) Special discount and protection of sales area provided to our distributor.
5) Warmly welcome your visit in our company if available.
6) . Warranty
(A) We provide warranty of all components for 24 months. During this time, we will replace or repair our goods for free if there is something wrong with them.
(B) We will provide maintenance for a lifetime and charge for the raw materials only.
7) Technology Training
(A) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(B) We will send our engineers to your country by negotiation.
