Made In China P10(P8 P6) Outdoor LED Display for Fixed Installation Advertising Screen 9-BOF-B-Tia.pdf
| Module Parameter | Item | Specification Parameter |
| Pixel Pitch, Resolution rate, size, weight | 10mm, 32*16 Dots, 320*160mm |
| Pixel color, Pixel LED | 1R1G1B, SMD3535 |
| Working voltage, Module Power | DC5V, 48W |
| Driving IC, Driving way | MBI5124, 1/2S |
| HUB | QP-HUB75(MRV220)-V1.1 |
Outdoor Fixed Installation LED Display Parameters:
| | BOF-B-3 | BOF-B-4 | BOF-B-5 | BOF-B-6 | BOF-B-8 |
| Physical Pitch | 3.2 mm | 4 mm | 5 mm | 6.67 mm | 8 mm |
| Pixel Configuration | SMD 1921 | SMD 1818 | SMD 2727 | SMD 2727 | SMD 3535 |
| Pixel Density | 97,656 pixels/m² | 62,500 pixels/m² | 40,000 pixels/m² | 22,376 pixels/m² | 15,625 pixels/m² |
| Module Dimensions (W × H) (mm) | 192 × 192 | 320 × 160 | 320 × 160 | 320 × 160 | 320 × 160 |
| Panel Dimensions (mm) | 960 × 960 × 150 | 960 × 960 × 150 | 960 × 960 × 150 | 960 × 960 × 150 | 960 × 960 × 150 |
| Physical Resolution of Module (W × H) | 60 × 60 | 80 × 40 | 64 × 32 | 48 × 24 | 40 × 20 |
| Physical Resolution of Panel (W × H) | 300 × 300 | 240 × 240 | 192 × 192 | 144 × 144 | 120 × 120 |
| Average Power Consumption | 360 W/m² | 360 W/m² | 36 W/m² | 360 W/m² | 360 W/m² |
| Max Power Consumption | 900 W/ m² | 900 W/ m² | 900 W/ m² | 900 W/ m² | 900 W/ m² |
| Average Power After Energy Saving | - | - | - | 90 W/ m² | 90 W/ m² |
| Max Power After Energy Saving | - | - | - | 230 W/ m² | 230 W/ m² |
| Brightness | ≥6500 nits | ≥6500 nits | ≥6500 nits | ≥6500 nits | ≥6500 nits |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
100, 000 Hrs
|

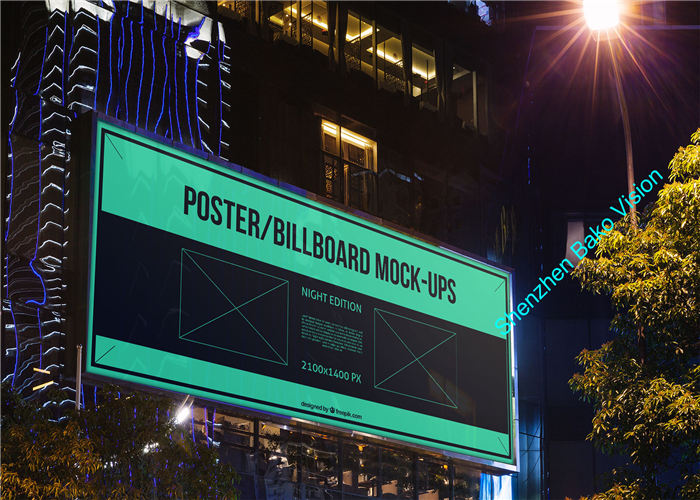

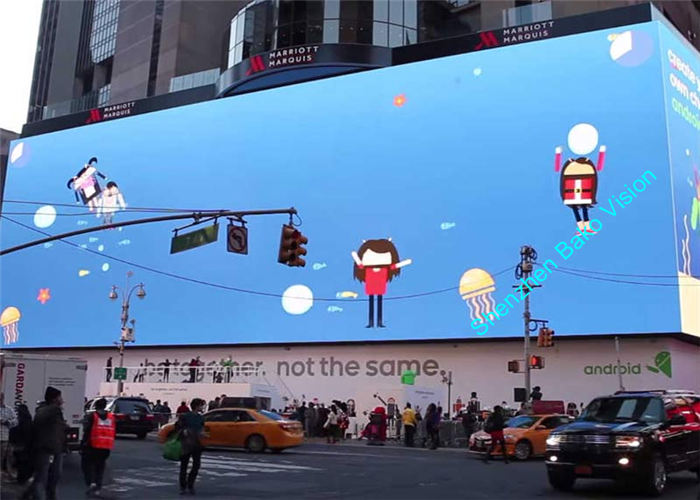

Outdoor Fixed Installation LED Display Cases:
Outdoor Fixed Installation LED Display Features:
1)This cabinet of SMD outdoor led display can serve as large advertising led wall with great visual effect.
2)It's suitable for stage, bank, promotion, exhibition, station, KTV, stadium, airport and all outdoor places.
3)Ultra-thin cabinet and modular design can save installation and maintenance cost and also enhance work efficiency.
4)Adopted MBI constant current driver which can make refresh rate up to 1920Hz load with single receiving card in one cabinet. High quality product ensure stable and clear image output.
5)Special waterproof design protect your product out of water, the high quality is worthy of trust.
6)The outdoor SMD led display features NOVA control system which ensures great quality output, high resolution display, fast loading time and high refresh rate.
About Us:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
