Specification
| | BP-1 | BP-2 | BP-3 |
| Physical Pitch | 1.9mm | 2.5mm | 3mm |
| Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 |
| Pixel Density | 279,936 pixels/sqm | 169,344 pixels/sqm | 110,889 pixels/sqm |
| Module Dimentions (W*H)(mm) | 160*160 | 280*210 | 192*192 |
| Whole Set Dimentions (W*H)(mm) | 640*1920*32 | 568*1898*32 | 574*1928*35 |
| No.of Modules Per Panel (W*H) | 4*12 | 2*9 | 2*9 |
| Physical Resolution of Module (W*H) | 84*84 | 112*84 | 64*64 |
| Physical Resolution of Whole Set (W*H) | 336*1,010 | 228*756 | 192*640 |
| Panel Material | Aluminum | Aluminum | Aluminum |
| Single Cabinet Weight | 28kg | 28kg | 32kg |
| Processing | 16bit | 16bit | 16bit |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption | 250W/set | 200W/set | 200W/set |
| Max Power Consumption | 750W/set | 600W/set | 600W/set |
| Driving Method | 1/32 Dynamic Scan | 1/32 Dynamic Scan | 1/32 Dynamic Scan |
| Refresh Rate | >2,880Hz | >2,880Hz | >2,880Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| IP Rating(Front/Rear) | IP40 | IP40 | IP40 |
| Frame Rate | 60fps | 60fps | 60fps |
| Servicing | Front | Front | Front |
| Bezel | 4mm | 4mm | 4mm |

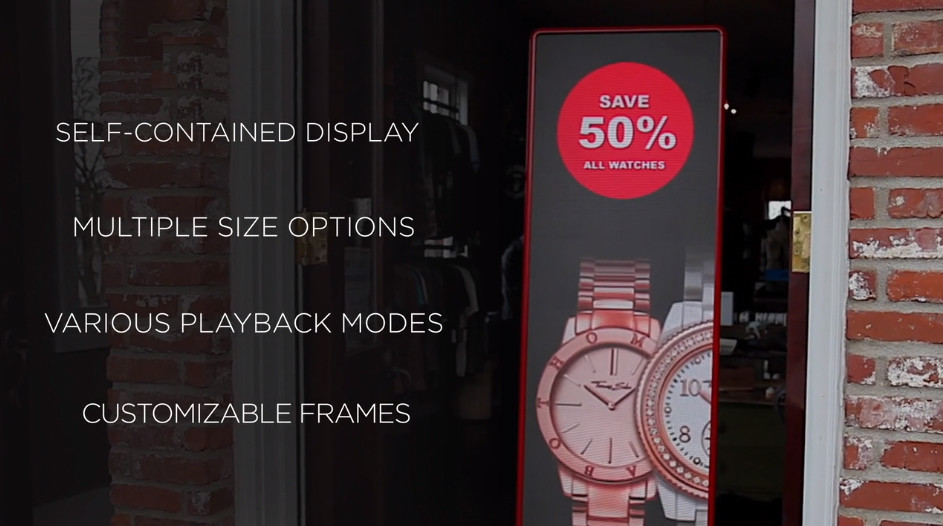

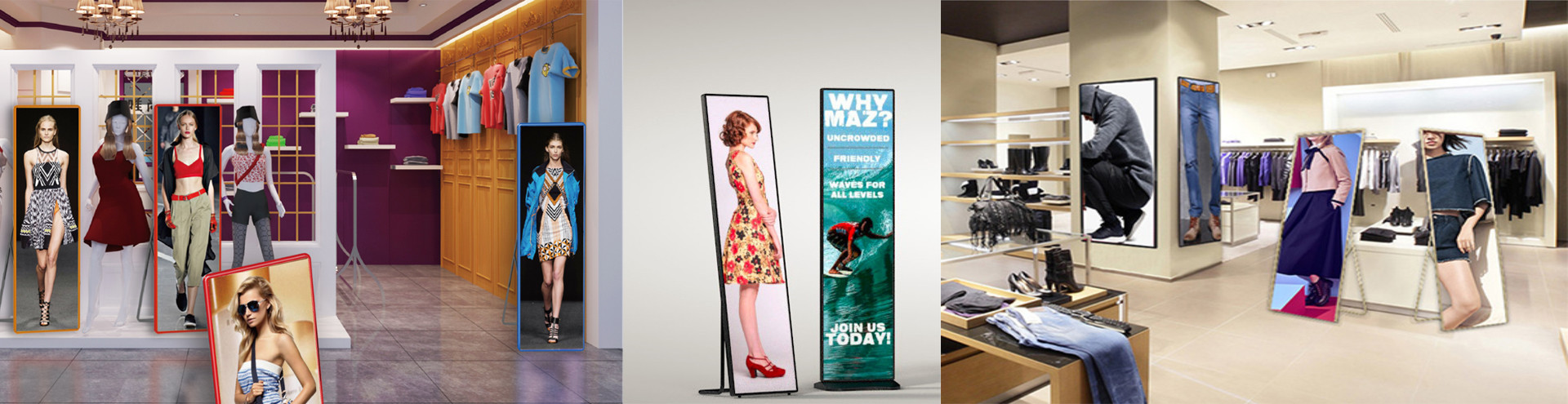

BP Series Slim, Form Changeable Digital Ads Poster
Case
Our Service
Packaging and Shipping
FAQ
Q1: Are you factory or a trade company?
A1: We are a factory owing professional R & D department and production lines with 14 years of experience in led display.
Q2: Why I should choose your company ?
A2: We have been focusing on the development of led screen and have a good reputaion in the market.We strictly follow up the requirements of customers,and are committed to achieve a win-win situation with customers.Whatever the products stability or service we will do better and better.
Q3: What's the warranty of your LED Display ?
A3: 2-5 years warranty .and 100000 hours life span.During the warranty period ,we can offer you related after-sales service. Our professional engineering team are always ready to answer your questions.
About Us
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
Product Tags:
|
|
Wide Viewing Angle Front Service LED Display P1.9 Aluminum Panel High Resolution Images
|
