P4.81 P6.67 P8 P10 Full Color Outdoor Fixed LED Display For Railway Station Shopping Mall
9-BOF-B.pdf
Outdoor Fixed LED Display Features:

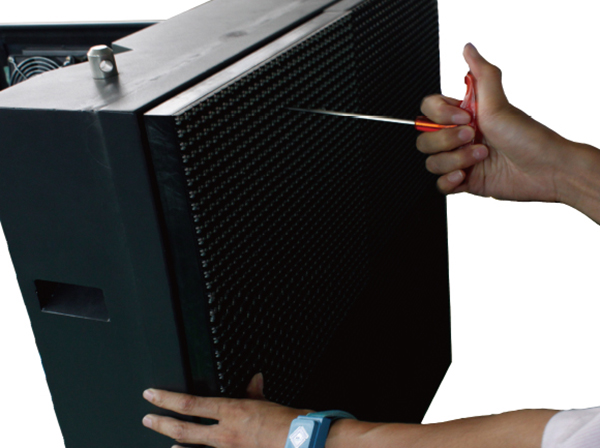

1.Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.
2.Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful.
3.Low release heat: low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.
4.Concave and convex setup support: client can asselbly any shape of the led wall display to make different show effect compare with common led display panel.
5.IP65 rating from front and rear.
6.Wide viewing angle.
7. High refresh rate, high gray scale.
Outdoor Fixed LED Display Specifications:
| | BOF-4 | BOF-6 |
| Physical Pitch | 4.81 mm | 6.67 mm |
| Pixel Configuration | SMD 2727 | SMD 3535 |
| Pixel Density | 43,264 pixels/m² | 22,500 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250 | 320*160 |
| Panel Dimentions(W*H)(mm) | 1000*1000*150 | 960*960*150 |
| NO. of Modules Per Panel (W*H) | 4*4 | 3*6 |
| Physical Resolution of Module (W*H) | 52*52 | 48*48 |
| Physical Resolution of Panel (W*H) | 208*208 | 144*144 |
| Panel Material | Steel /Aluminum | Steel /Aluminum |
| Weight (kg/m²) | 65/45 | 65/45 |
| Contrast Ratio | 2,000:1 | 2,000:1 |
| Average Power Consumption | 360 W/panel | 360 W/panel |
| Max Power Consumption | 900 W/panel | 900 W/panel |
| Brightness | ＞6,500 nits | ＞6,500 nits |
| Refresh Rate | ＞1,920 Hz | ＞1,920 Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° |
| Servicing | Front/Rear | Front/Rear |
| Operating Temp/Humidity | -20℃-50℃ /10%-90% | -20℃-50℃ /10%-90% |
| Storage Temp/Humidity | -20℃-50℃ /10%-90% | -20℃-50℃ /10%-90% |
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q8: How can I get technology support?
A:1,We will train in our factory and send video for showing. The training include system use, system maintenance and equipment protection.
